用处与间介：/Purpose and introduction

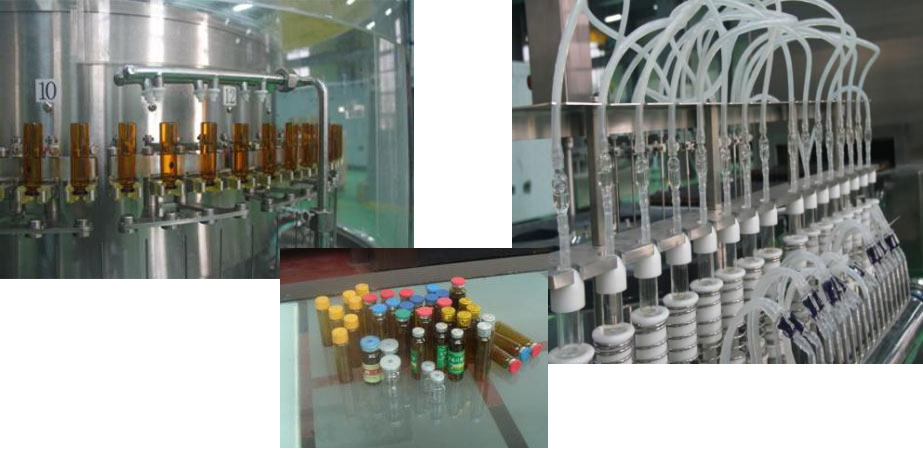

补血服食药液液洗烘灌轧联动机制机制线由垂直超声检查仪频率波洗瓶机、桥隧式自动空调 配置无菌烘烤箱、补血服食药液液包装轧盖机等组合成，适宜于 5-30ml 等各个规 格补血服食药液液瓶的产量方式。可顺利完成对otc药品产量方式中安瓿瓶淋水、超声检查仪频率波清洁工作、冲水、充 气、吹干无菌、冷却塔、包装、轧盖等工艺流程环节的联动机制机制运营。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

基本特征:/characteristic

◆洗瓶机采用了机械设备手夹瓶，不适用多种不同尺寸规格的瓶盖；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶使用水蒸汽喷针导杆跟踪软件放入策略，清晰治疗最合适，勤俭节约能量。并现有针架防发抖系统，延长喷针放入矿泉水瓶的确切度，减轻断针原因突发；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶所有水汽输送管、喷针几乎经济独立拆开，避开了交叉重合被污染的，贴合GMP标准规范条件；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前选配储存块，有呵护罗杆，增多碎瓶角色Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶采取整个进口报关同歩带，拼接拨块卸料内服液，加载不稳定性信得过In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱用红外线热处理加散热片，不锈钢圆管热处理加散热片单层热处理进行升温温湿度粗糙性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装罐轧盖机必选配淘瓷泵、不锈钢装饰管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖系统。Pieces filling without bottle filling, no bottle no rolling function.◆整线利用PLC总管理、交流变频、触屏式屏管理技术性，运转稳定可以信赖可以信赖。触屏式屏可表明各单机联机的运转模式，各管理点的通水压力、标准气压、压力、体温等表明，各开关按钮模式和机械机械告警表明，机械机械告警自我认识初步判断和机械机械告警数据分析及去掉方法步骤。使所有生产方式加工的过程 符合自功化管理，联线具备三机自动化动平衡试验装置，要确保生产方式加工均衡化可以信赖。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.依照合作方的要，还可供选择装配：According to the needs of customers, but also available for selection:◆欧姆龙、德力西、三凌、台达等品牌标志控住平台；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压为、水温表及mri波硬度、玦尘再生颗粒、风量免费在线验测、报警功能、记录查询、打印图片体统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌屏蔽器系統。Mixer ORABS, CRABS, aseptic isolator system.

科技指标：technical parameters

适于规格尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装罐要求Filling accuracy(%)	≤ ± 2.5
包装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖符合标准率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
