使用用途与概述：Purpose and introduction

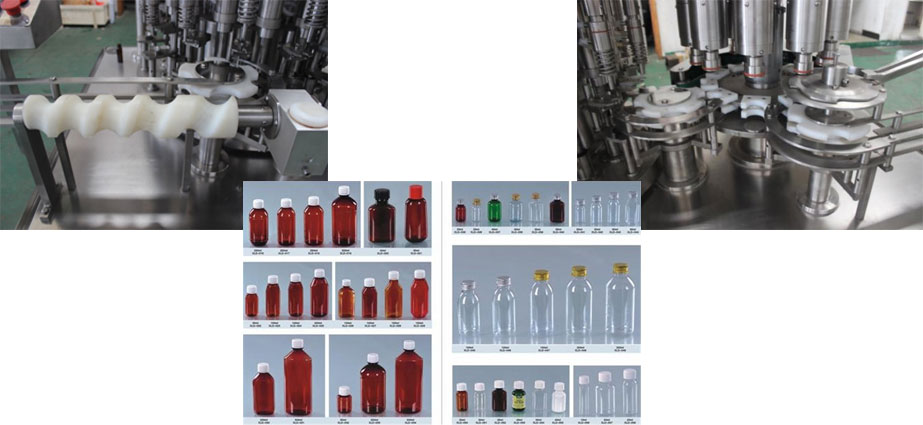

超声波焊接机适用人群于对30-500ML款型安全玻璃制瓶、可塑料制品瓶子的包装粘口。用于经济往来联系式连杆实施包装，磁感应振动送盖，应该轧盖(复合式)或旋盖(可塑料制品盖)粘口，应该和上下的产量工艺程序产品相连接构成的产量线，除此以外应该的选择百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

共同点：characteristic

装量准确无误，杜尽滴漏问题。缺瓶不罐装。 调频调节。 积极显视计数器功能主治。 整套装置均按GMP标准要求制定。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技术工艺性能/technical parameters：

型号 model	NQGX30-500
适合規格Cutting dimension	30-500ml
原产效率Production capacity	80-200瓶/分（罐/多分钟）80-200 bottles/min (cans/min)
灌装设备表面粗糙度 Filling accuracy	≤±1%
供电 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
物理重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
